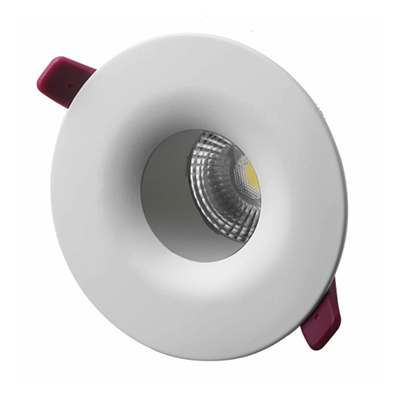

• Compact anti- glare downlight
  • Pure aluminum heat sink for superior heat releasing
  • Long life time

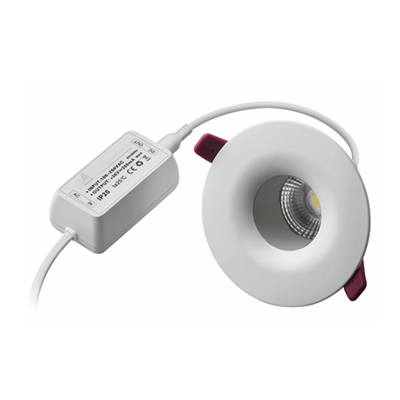

  • External Power supply : AC 100 or 180-250V 50/60Hz
  • Gradable Option
Model Ref Fixture Color Sizes (mm) Cut size (mm) Voltage CRI Lumen Beam Angle Color temperature Power Dimmable Lifetime Warranty Years
CDL06_001 White
Ø94*h49 Ø75-80

AC100V-250V
50HZ-60HZ

>80 520 25-38° 2700K
3000K
4500K
5500K
White
6,5W No 50000 3
CDL06_002 White
Ø94*h49 Ø75-80

AC180V-250V
50HZ-60HZ

AC90V-130V
50HZ-60HZ

>80 520 25-38° 2700K
3000K
4500K
5500K
White
6,5W Yes 50000 3
CDL06_003 White
Ø94*h49 Ø75-80

AC100V-250V
50HZ-60HZ

>80 640 25-38° 2700K
3000K
4500K
5500K
White
8W No 50000 3
CDL06_004 White
Ø94*h49 Ø75-80

AC180V-250V
50HZ-60HZ

AC90V-130V
50HZ-60HZ

>80 640 25-38° 2700K
3000K
4500K
5500K
White
8W Yes 50000 3
